TEEMYEAH TY-923 Fruit and Vegetable Filling Chopper
Industrial vegetable filling chopper for adjustable fine chopping in central kitchens and food processing plants
The TEEMYEAH TY-923 is a fruit and vegetable filling chopper for preparing finely chopped or paste-like ingredients for bun fillings and other food preparation. Suitable ingredients include garlic, ginger, potato, spinach, onion, peanuts and cabbage.
A built-in frequency converter lets operators adjust machine speed to suit the ingredient and desired fineness. The machine uses SUS304 construction and can be paired with a lifting feeder for loading.
- Prepares finely chopped or paste-like produce for filling preparation
- Built-in frequency converter for adjustable operating speed and fineness
- SUS304 machine construction
- Replaceable cutting-tool parts available for purchase
- Can be paired with a lifting feeder for loading
- 500–1,000 kg/h output range; confirm throughput with your ingredient and target texture
TY-923 Filling Chopper Details
The TY-923 is intended for produce preparation where a finely chopped or paste-like result is needed before mixing and filling. Suitable ingredients include garlic, ginger, potatoes, spinach, onions, peanuts and cabbage. Actual texture depends on the ingredient, machine settings and feed conditions, so the preferred result should be checked with representative material.
Operators can adjust the built-in frequency converter to change speed and work toward the desired fineness. Cutting-tool parts can be purchased and replaced. Cleaning and maintenance should follow the supplied operating instructions and site hygiene practice.
For a complete workflow, the TY-923 can be considered alongside an appropriate washing or preparation stage and a lifting feeder. Confirm the ingredient, target texture, feeding method and downstream handling before selecting a configuration.
Download the TY-923 product specification (PDF) for the equipment overview and technical parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TY-923 |
| Product | Fruit and Vegetable Filling Chopper |
| Dimensions (L × W × H) | 1,200 × 900 × 1,500 mm |
| Power Supply | 3-phase 380 V |
| Power | 2.2 kW |
| Output Range | 500–1,000 kg/h; confirm throughput with your ingredient and target texture |
| Machine Weight | 200 kg |
| Construction | SUS304 stainless steel |
| Speed Control | Built-in frequency converter |
| Feed Arrangement | Can be paired with a lifting feeder |
Confirm the final configuration and achievable output with your ingredient and target texture.
Applications
The TY-923 is used to prepare fine produce mixtures and filling ingredients in food production settings.
- Vegetable filling preparation for buns and similar foods
- Central kitchen ingredient preparation
- Food processing plants and seasoning factories
- Commercial kitchens and restaurants
Example ingredients include garlic, ginger, potato, spinach, onion, peanuts and cabbage. Confirm the suitability of other ingredients and the required finish through a sample trial.
Discuss Your TY-923 Filling Process
Tell us the ingredient, batch or hourly target, desired texture, upstream preparation and available power supply. Share a sample photo or process requirement if available. TEEMYEAH can review the TY-923 configuration, feeding arrangement and a suitable product trial for your application.
From Produce to Filling Ingredient
Prepared ingredients enter the TY-923 for fine chopping. It can make slurry-like or finely cut material for bun fillings. The exact feed method and degree of size reduction should be agreed through a sample trial with the intended ingredient.
Adjusting for the Desired Texture
The built-in frequency converter allows speed adjustment according to the ingredient and preferred fineness. Record the accepted setting and product result during a trial so operators can repeat the agreed process.
Planning the Feed and Cleaning Routine
The TY-923 can work with a lifting feeder. Confirm access around the machine, loading height and downstream collection before line layout. Cutting-tool parts are replaceable; use the supplied operating and cleaning instructions for the final configuration.

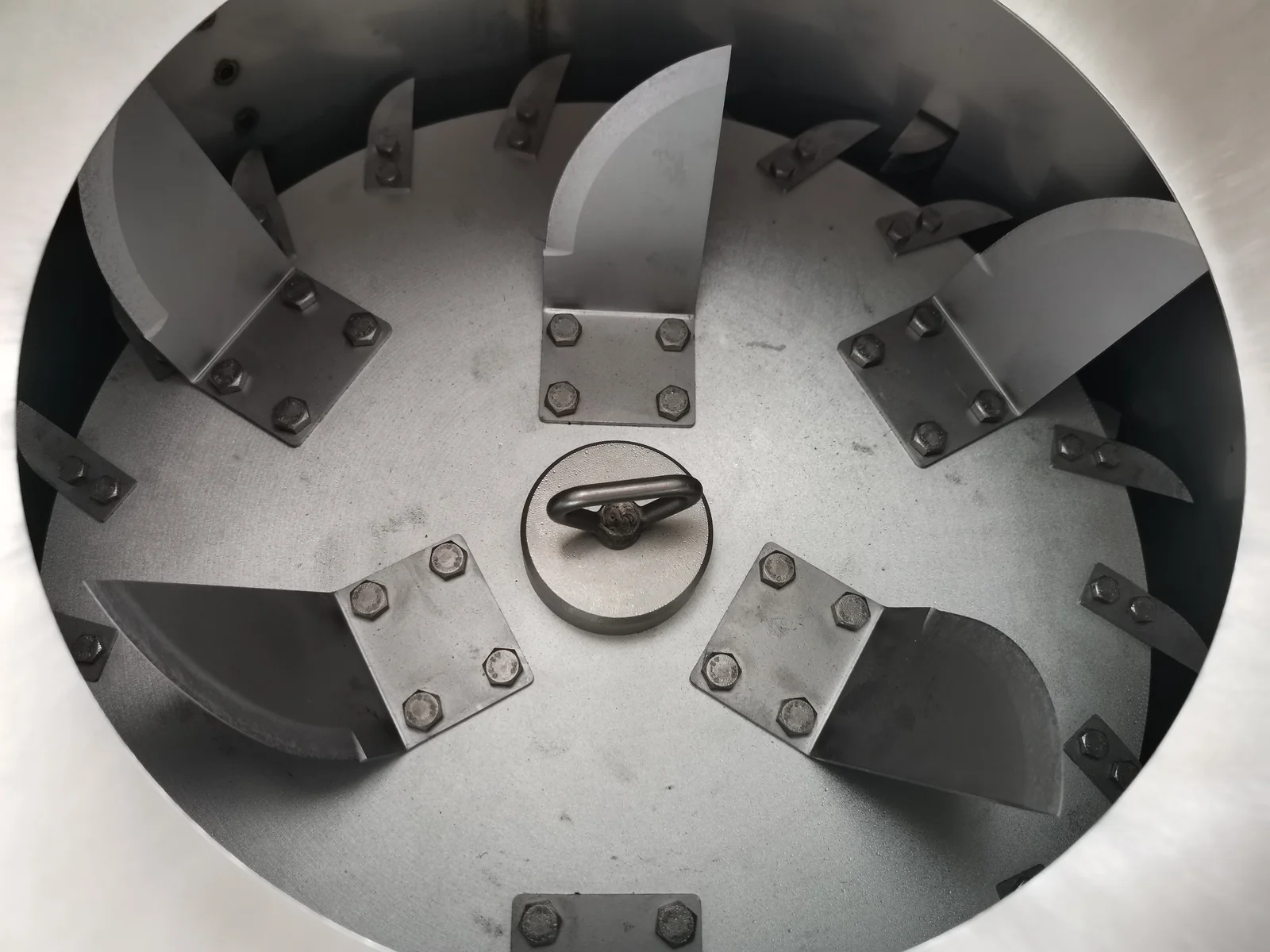

TY-923 Chopper and Cutting Blades
TY-923 Frequently Asked Questions
