We have upgraded the TY-805 medium vegetable cutter with a square blade housing in the leafy-vegetable cutting section, replacing the previous rounded design. The update improves operating stability and ease of use while giving the machine a more distinct appearance.
TY-805 Blade Housing: Before and After

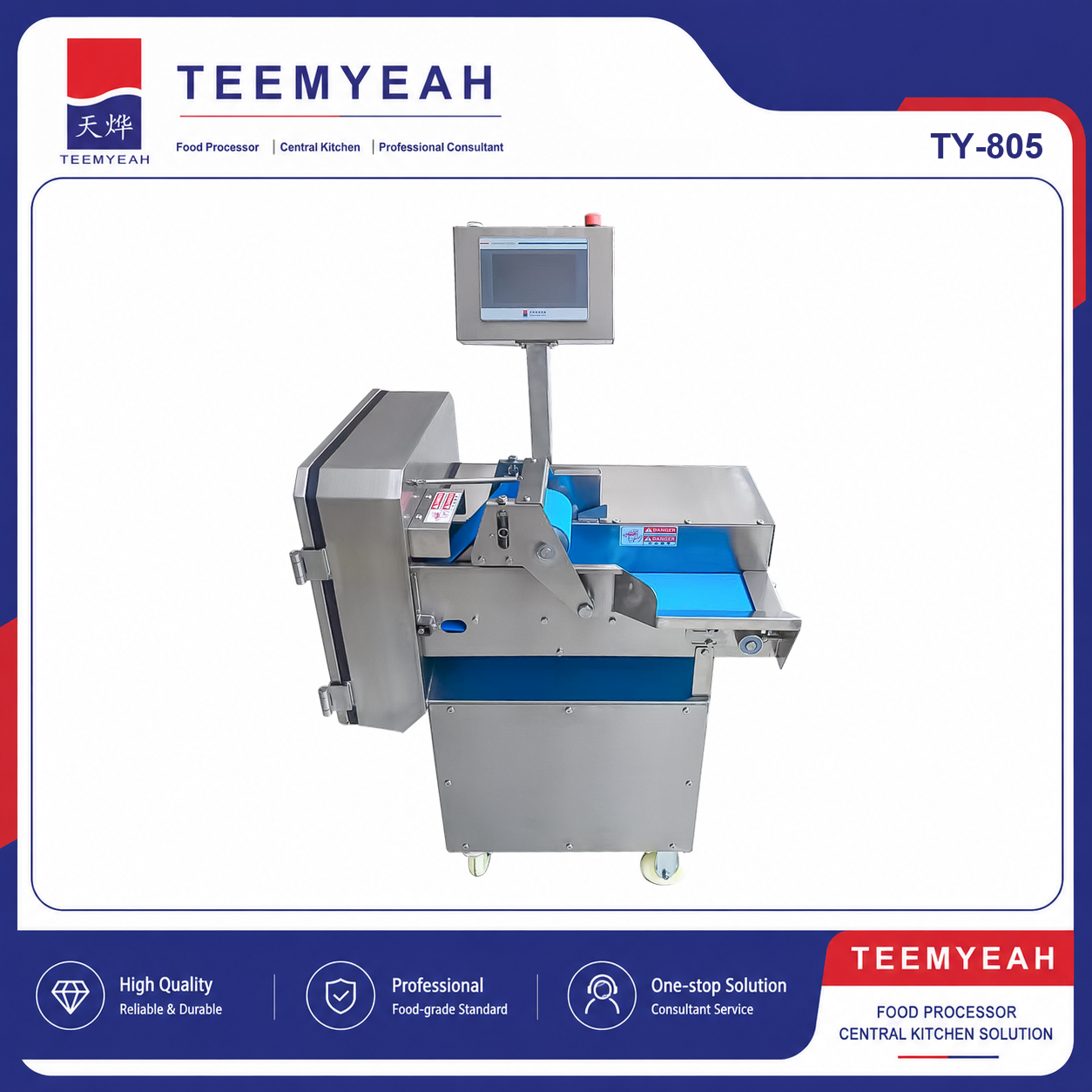

The most visible change is the shape of the cutting enclosure. The upgraded square housing is now part of the TY-805 configuration shown below.
Improved Operation with No Price Increase for the Housing Upgrade
Following a year of development and operating experience, the upgraded TY-805 configuration is ready for wider use. The blade-housing upgrade does not change the machine price. Please confirm your required configuration and current delivery schedule with our team when ordering.
Flexible Cutting for Produce Preparation
The TY-805 processes leafy and long vegetables into slices, shreds or sections. Applications include celery, Chinese cabbage, cabbage, spinach, scallions, garlic and suitable melon pieces. Interchangeable cutting discs and dual variable-frequency speed control allow the cutting settings to be matched to the ingredient and finished-product requirements.
The machine is suited to supermarket produce preparation, fresh-cut vegetable distribution, agricultural produce businesses and central kitchens.
Touchscreen Control and Digital Connectivity
- Operating visibility: the touchscreen displays machine status and operating data.
- Alarm records: text-based alarm display and recording assist operation, servicing and troubleshooting.
- Service access: circuit protection and keyed quick-disconnect wiring support maintenance and component replacement.
- Digital connection: an IoT communication interface allows connection to a digital system, with the protocol and integration scope confirmed for each project.
- Touchscreen protection: the touchscreen is IP65-rated. Follow the supplied instructions when cleaning the machine.
TY-805 Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | TY-805 |
| Dimensions (L ร W ร H) | 750 ร 670 ร 1220 mm |
| Finished shapes | Slices, shreds and sections |
| Cutting range | 1โ30 mm, adjustable |
| Rated capacity | 500โ800 kg/h |
| Power supply | 220 V, single phase |
| Power | 0.92 kW |
| Conveyor width | 120 mm |
| Machine weight | 60 kg |
| Included accessory | One set of chopping blades |
Actual throughput depends on product type, preparation, cut size and feeding conditions.
Explore the Upgraded TY-805
Visit the TY-805 medium vegetable cutter product page for the full equipment overview and specifications, or browse our vegetable and fruit cutting equipment. For a quotation, share your vegetables, required cut size and hourly output with our team.
