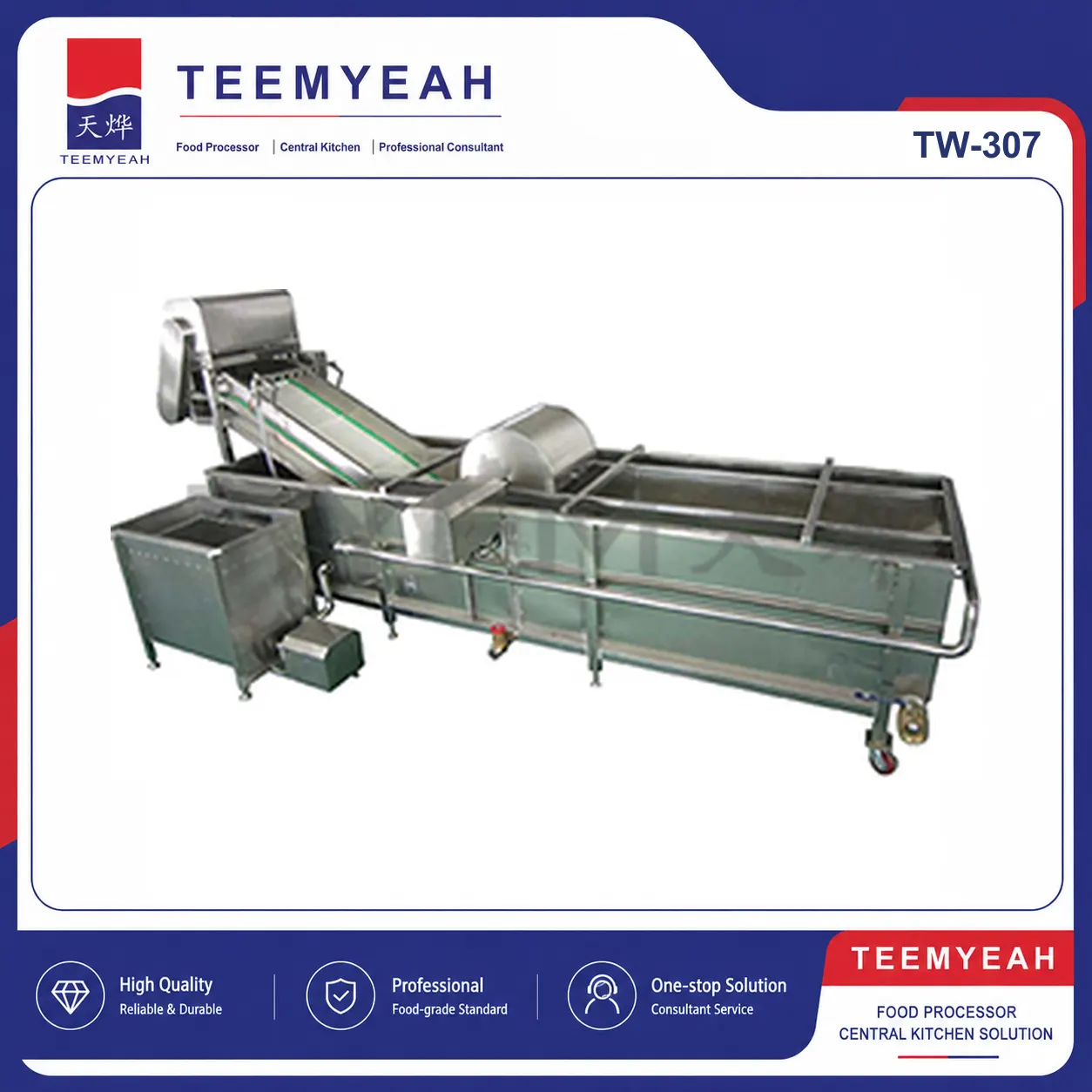

TEEMYEAH TW-307 Root Vegetable Washing and Cooling Line
Continuous root-vegetable washing with optional water-based cooling duty
The TW-307 is a continuous root-vegetable washing line with external water circulation and debris removal. With water at the required process temperature, the same line can also serve as a water-based cooling stage after blanching.
Set feed rate, water temperature and residence time for the actual product, then confirm the outlet condition in a representative trial.
- Continuous washing for root vegetables
- Can serve as a water-based cooling stage with suitable water supply
- 3.2 m washing path per tank
- External water circulation helps move debris to an accessible removal point
- SUS 304 stainless-steel construction
TW-307 Washing and Cooling Functions
The TW-307 provides a 3.2 m washing path per tank for continuous root-vegetable processing. Its SUS 304 stainless-steel body and external water-circulation system help carry soil and debris to an accessible removal point.
For cooling after blanching, supply water at a temperature suitable for the product and set feed speed and residence time to meet the desired outlet condition. Cooling performance depends on incoming product temperature, loading and water conditions; verify the result in a representative trial. If chilled water is needed, specify the external cooling utility separately.
TW-307 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TW-307 |
| Primary function | Continuous root-vegetable washing |
| Additional application | Water-based cooling with suitable supplied water and verified process settings |
| Washing path | 3.2 m per tank |
| Dimensions (L × W × H) | 4700 × 2150 × 1950 mm |
| Electrical supply | 380 V, three-phase |
| Power | 4.0 kW |
| Construction | SUS 304 stainless steel |
Confirm water supply, feed rate, residence time and cooling-water requirements for the actual product. No fixed cooling capacity is stated.
TW-307 Applications
- Continuous cleaning of root vegetables in prepared-produce operations
- Water-based cooling after blanching when supplied with process-appropriate water
- Integration with upstream preparation and downstream transfer equipment
Confirm the required cleanliness or outlet temperature with a product trial before selecting the final line configuration.
Plan TW-307 Washing or Cooling Duty
Tell us the incoming root vegetables, target washing result or outlet temperature, expected feed rate and available water utilities. TEEMYEAH can help define the line configuration and a representative process trial.
