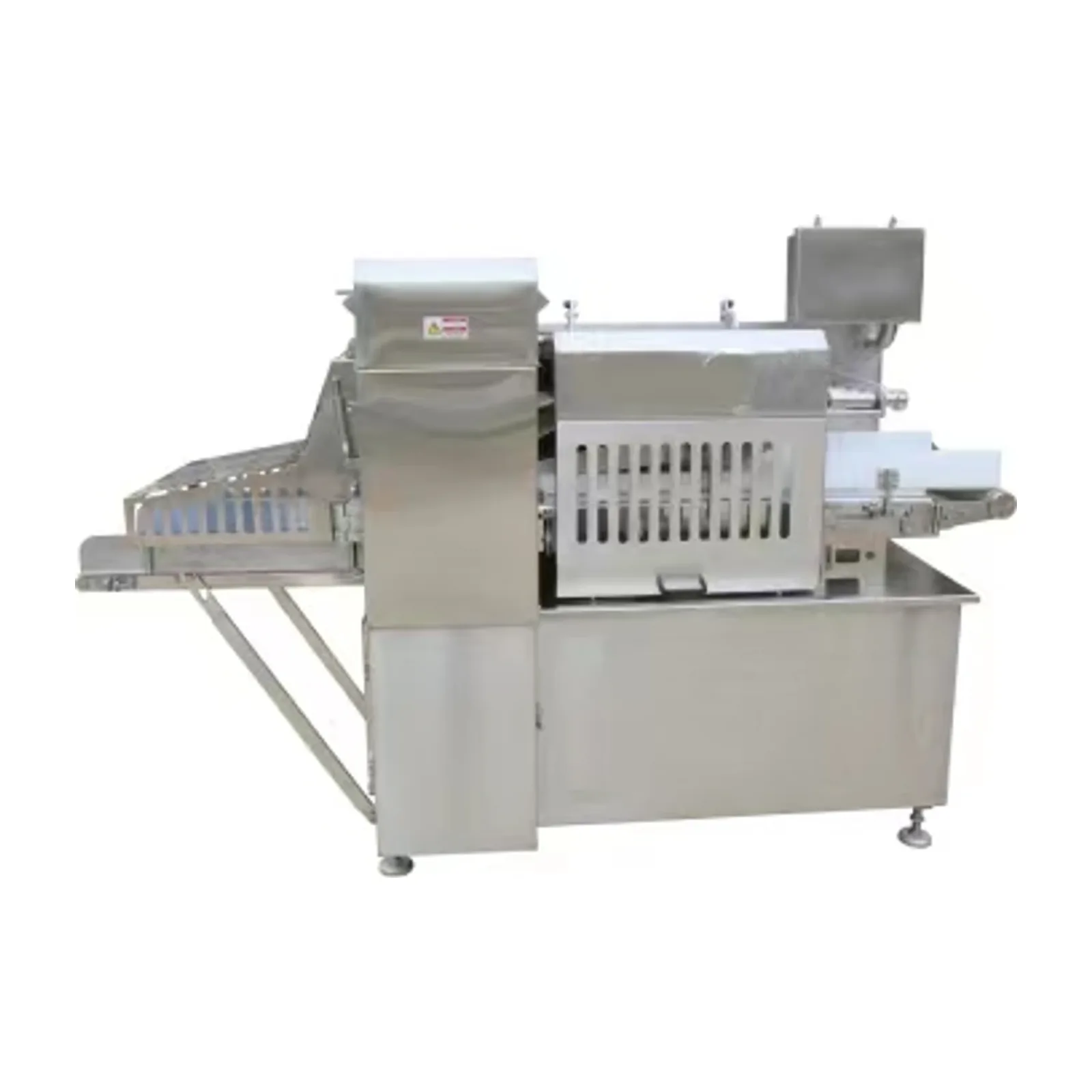

TEEMYEAH TY-470 Industrial Continuous Frozen Meat Dicer
Continuous frozen meat dicer for strips, slices and cubes in industrial processing lines
The TEEMYEAH TY-470 is a continuous two-dimensional cutting machine for frozen meat, poultry, fish and seafood. It can produce cubes, strips or slices within the ordered cutting configuration.
Upper and lower conveyor belts grip and feed the product while a six-guide-column linear cutting mechanism performs the cut. The machine uses SUS304 brushed stainless steel, PLC touch-screen control and variable-frequency speed control.
- Continuous loading for frozen meat, poultry, fish and seafood
- Produces cubes, strips or slices in the ordered configuration
- Upper and lower conveyor belts hold the product during feeding
- Six-guide-column linear cutting mechanism
- Adjustable knife position and replaceable lower cutting edge
- Safety interlock shuts down the circuit when triggered
- SUS304 brushed stainless steel construction
TY-470 Continuous Dicer Details
The TY-470 is designed for continuous frozen-product cutting. The twin-belt feeding structure holds the product between upper and lower conveyors, helping maintain a flat contact surface as material enters the cutting area.
The knife position can be adjusted as wear develops, and the lower cutting edge can be replaced. PLC touch-screen controls and a variable-frequency drive support operating adjustment. The source specification lists a preferred cutting temperature range of −6 °C to −5 °C.
Confirm the product dimensions, temperature, required cube, strip or slice size, feeding method and downstream transfer before selecting the final configuration. Use the supplied operating instructions for adjustment, sanitation and safety procedures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TY-470 |
| Product | Continuous Two-Dimensional Frozen Meat Dicer |
| Dimensions (L × W × H) | 3,200 × 1,130 × 1,640 mm |
| Power Supply | 3-phase 380 V, 50 Hz |
| Total Power | 10.6 kW |
| Air Supply | 0.2 MPa |
| Circular Blade Diameter | 200 mm |
| Maximum Product Width | 468 mm |
| Maximum Product Height | 120 mm |
| Maximum Listed Dicing Size | 50 mm |
| Defrosted-Product Environment | −6 °C to −3 °C |
| Preferred Cutting Temperature | −6 °C to −5 °C |
| Knife Speed | 42–85 cycles/min |
| Feed Mode | Continuous |
| Control | PLC touch screen and variable-frequency drive |
| Construction | SUS304 brushed stainless steel |
| Machine Weight | 1,800 kg |
Confirm the final cut specification, product temperature and achievable output with representative material.
Applications
The TY-470 is used in industrial lines that need continuous cutting of frozen or tempered animal-protein products.
- Frozen meat cubes, strips and slices
- Poultry cutting before further processing
- Fish and seafood cutting
- Prepared-food and central-kitchen production
Product dimensions must remain within the listed feed limits. A sample trial is recommended to confirm the required cut and operating temperature.
Plan Your TY-470 Cutting Trial
Share the product type, block dimensions, temperature, target cube, strip or slice size, hourly requirement and available utilities. TEEMYEAH can review the TY-470 configuration, product trial and line interfaces.
Continuous Twin-Belt Feeding
Upper and lower conveyor belts grip the product and keep the contact surface flat as material enters the cutting section. Confirm product dimensions and temperature for stable feeding.
Cut Configuration and Temperature
The final cube, strip or slice depends on the installed cutting configuration and product condition. Trial representative material near the intended production temperature before approving the result.
Adjustment and Cleaning Access
The knife position can be adjusted as wear develops, and the lower cutting edge can be replaced. The machine is designed for direct water-gun cleaning; follow the supplied sanitation and lockout procedure.

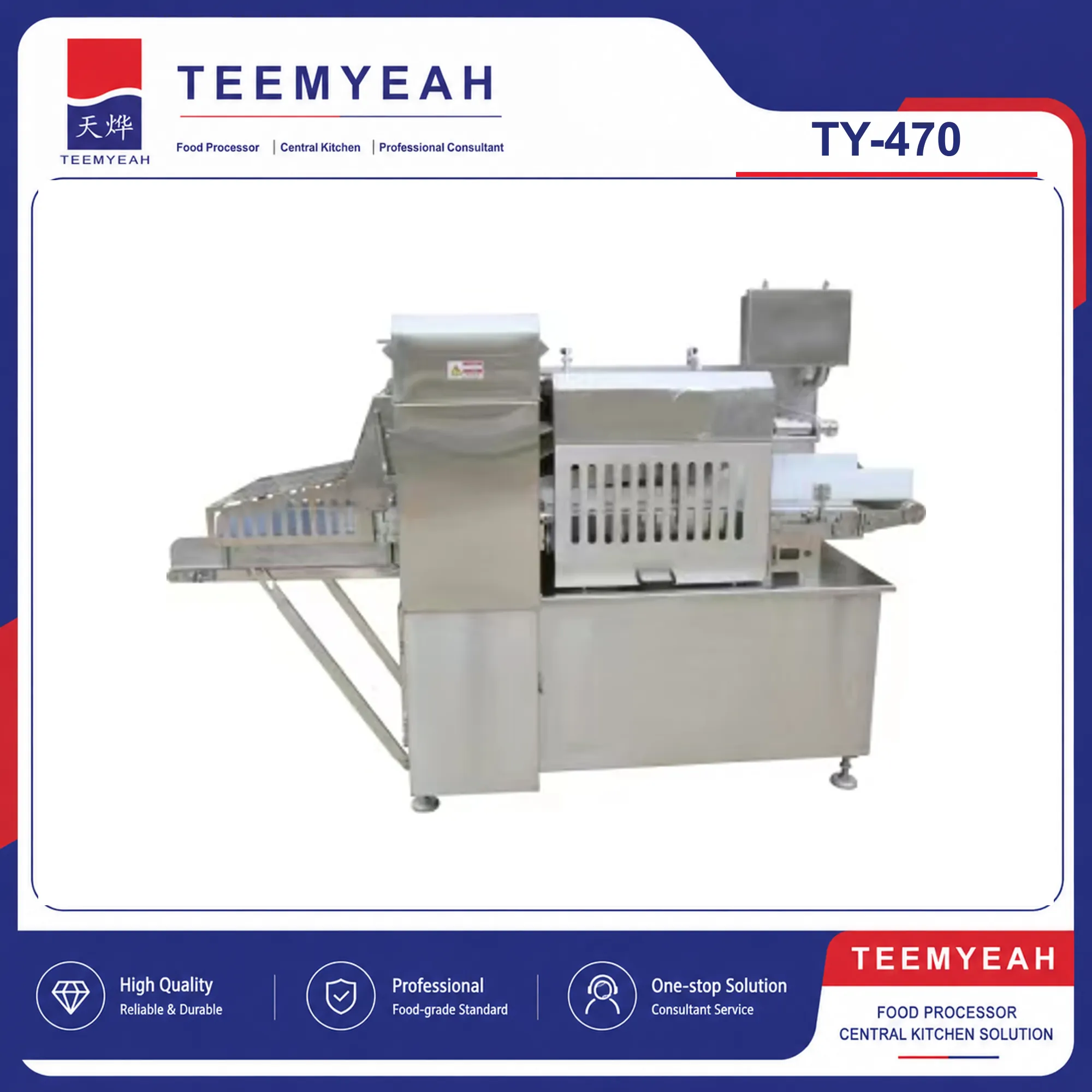

TY-470 Continuous Dicer Detail
