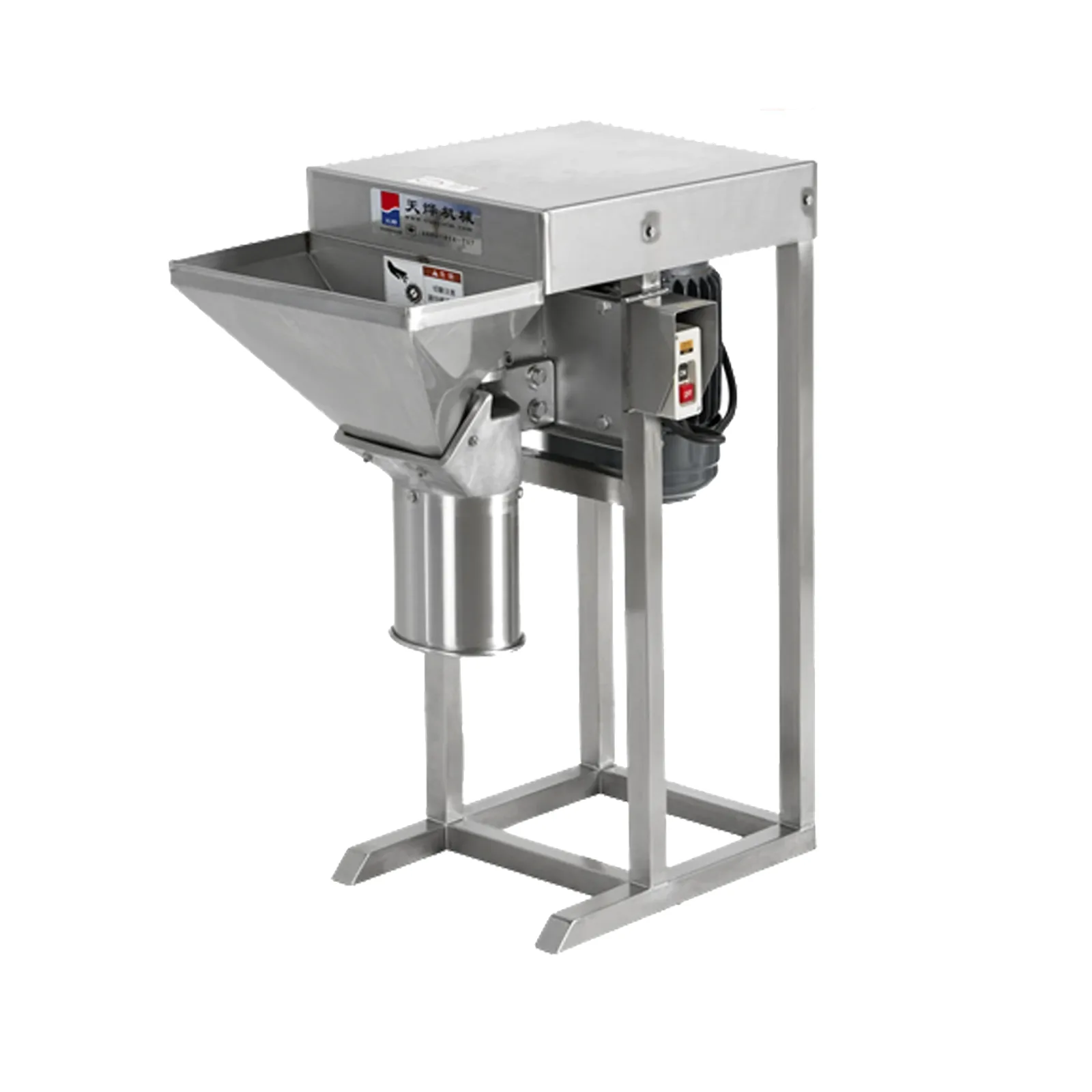

TEEMYEAH TW-813NS Compact Garlic and Vegetable Crusher
Compact SUS304 crusher for garlic, young ginger, chili and soft produce
The TEEMYEAH TW-813NS crushes garlic, young ginger, chili and compatible soft fruit or vegetables into paste or fine pieces.
The modular blade arrangement allows the number of blade groups to be changed for the required degree of crushing.
- Paste or fine-piece results
- About 200 kg/h reference output
- 10 blade groups supplied
- Up to 13 blade groups listed
- SUS420 blade material
- SUS304 machine construction
TW-813NS Food Crusher Details
The TW-813NS is intended for condiment plants, restaurants and food processors that need compact crushing.
Confirm ingredient firmness, moisture, feed size, blade count and target texture through a representative trial.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TW-813NS |
| Product | Compact Garlic and Vegetable Crusher |
| Dimensions (L × W × H) | 670 × 400 × 780 mm |
| Finished Forms | Paste or fine pieces |
| Reference Output | Approximately 200 kg/h |
| Power Supply | 220 V single phase |
| Power | 0.75 kW |
| Machine Weight | 40 kg |
| Included Blades | 10 groups |
| Maximum Listed Blades | 13 groups |
| Blade Material | SUS420 |
| Construction | SUS304 stainless steel |
Texture and output depend on ingredient condition, feed size, moisture and installed blade count.
Applications
The TW-813NS supports condiment and soft-produce crushing.
- Garlic and young ginger
- Chili and soft vegetables
- Condiment factories
- Restaurants and food processing plants
Confirm hard, fibrous or unusually dry ingredients through a trial.
Discuss Your TW-813NS Application
Share the ingredient, moisture, incoming size, target texture, blade count and hourly requirement.
Modular Blade Arrangement
Add or remove blade groups within the listed configuration to target the required texture.
Cleaning the Blade Set
Remove and clean the modular blade assembly according to the site sanitation routine.
TW-813NS Food Crusher Display
