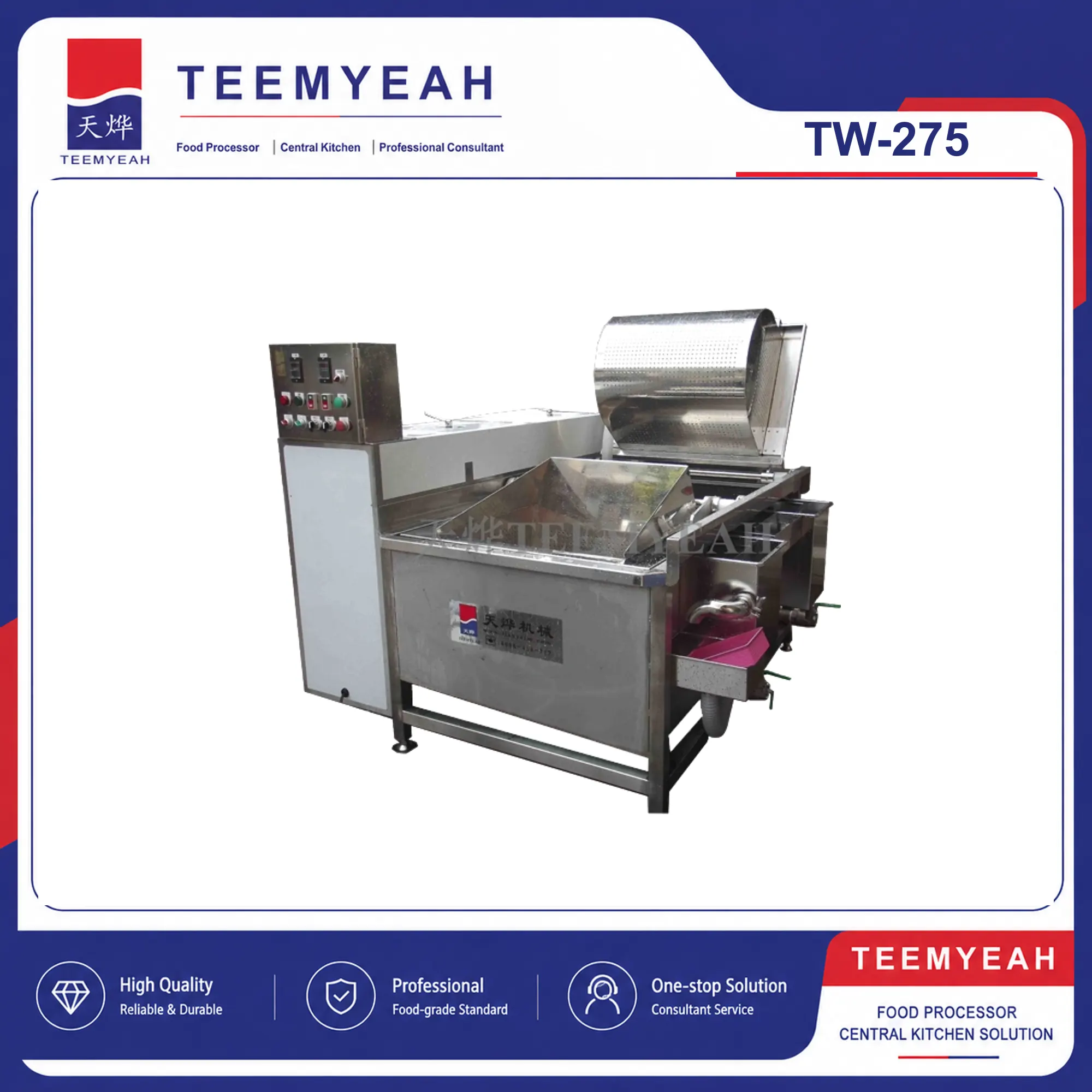

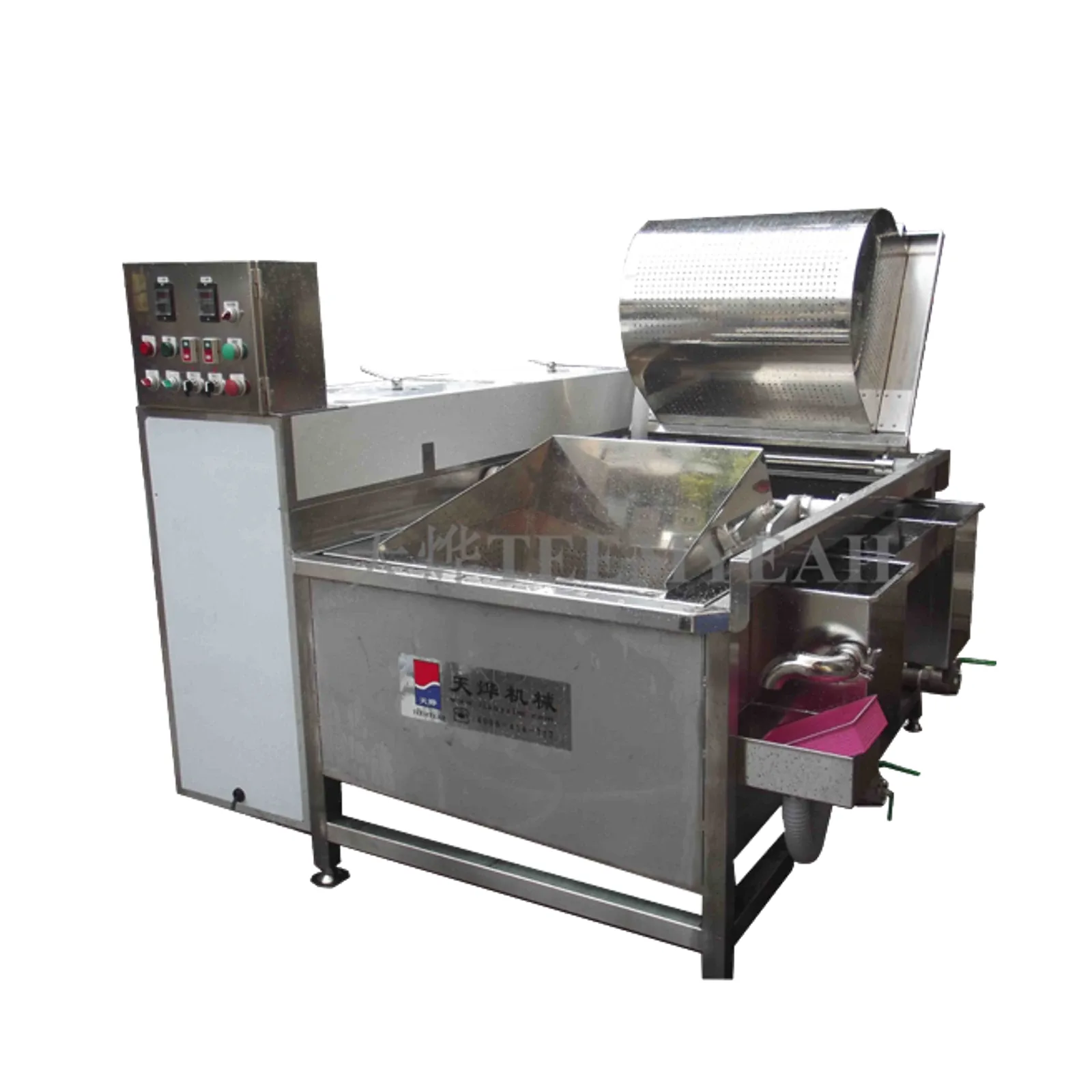

TEEMYEAH TW-275 Two-Tank Tilting Vegetable Washing Line
Two-tank batch washing line with timed washing and hydraulic tilting discharge
The TEEMYEAH TW-275 uses two washing tanks for vegetables, fruit and compatible small seafood products.
Each tank has a listed SUS pump and hydraulic tilting assembly. PLC control supports timed washing and manual or automatic sequential discharge.
- Two washing tanks
- Two 1 HP SUS pumps
- Two hydraulic tilting assemblies
- Manual or automatic sequential discharge
- PLC control
- 15–20 kg listed batch size
TW-275 Tilting Washing Line Details
The TW-275 supports staged batch washing where product is transferred between two tanks and discharged by tilting.
Confirm product buoyancy, fragility, soil load, batch weight, wash time, water change and downstream receiving height.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TW-275 |
| Product | Two-Tank Tilting Vegetable Washing Line |
| Dimensions (L × W × H) | 2,105 × 1,860 × 1,670 mm |
| Batch Size | 15–20 kg per batch |
| Power Supply | 380 V three phase |
| Power | 5.25 kW |
| Wash Tanks | 2 |
| Pump Configuration | Two 1 HP SUS pumps |
| Discharge | Two hydraulic tilting assemblies |
Batch size and wash time must be validated for product density, soil load and required result.
Applications
The TW-275 supports staged washing in food plants and central kitchens.
- Leafy and root vegetables
- Fruit preparation
- Small fish, shrimp, seaweed and compatible seafood
- Central kitchens and food processing plants
Tank count can be configured only after the required process sequence is confirmed.
Discuss Your TW-275 Application
Share the product, batch weight, soil load, wash objective, water plan and discharge direction.
Two-Tank Washing Sequence
The first and second tanks support a defined staged wash before hydraulic discharge.
Water and Discharge Planning
Confirm water change, drainage and the receiving height for each tilting step.
TW-275 Tilting Washing Line Display
