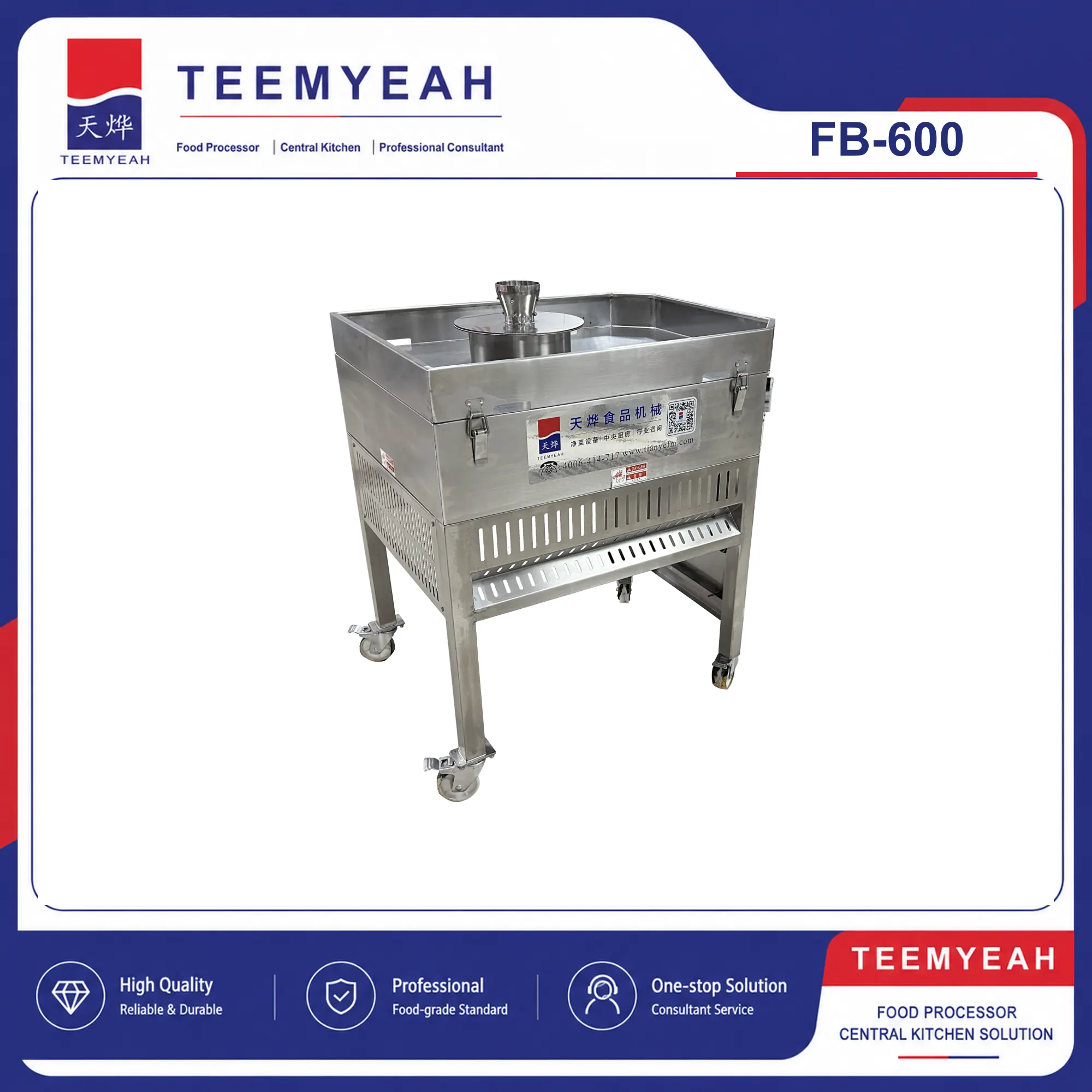

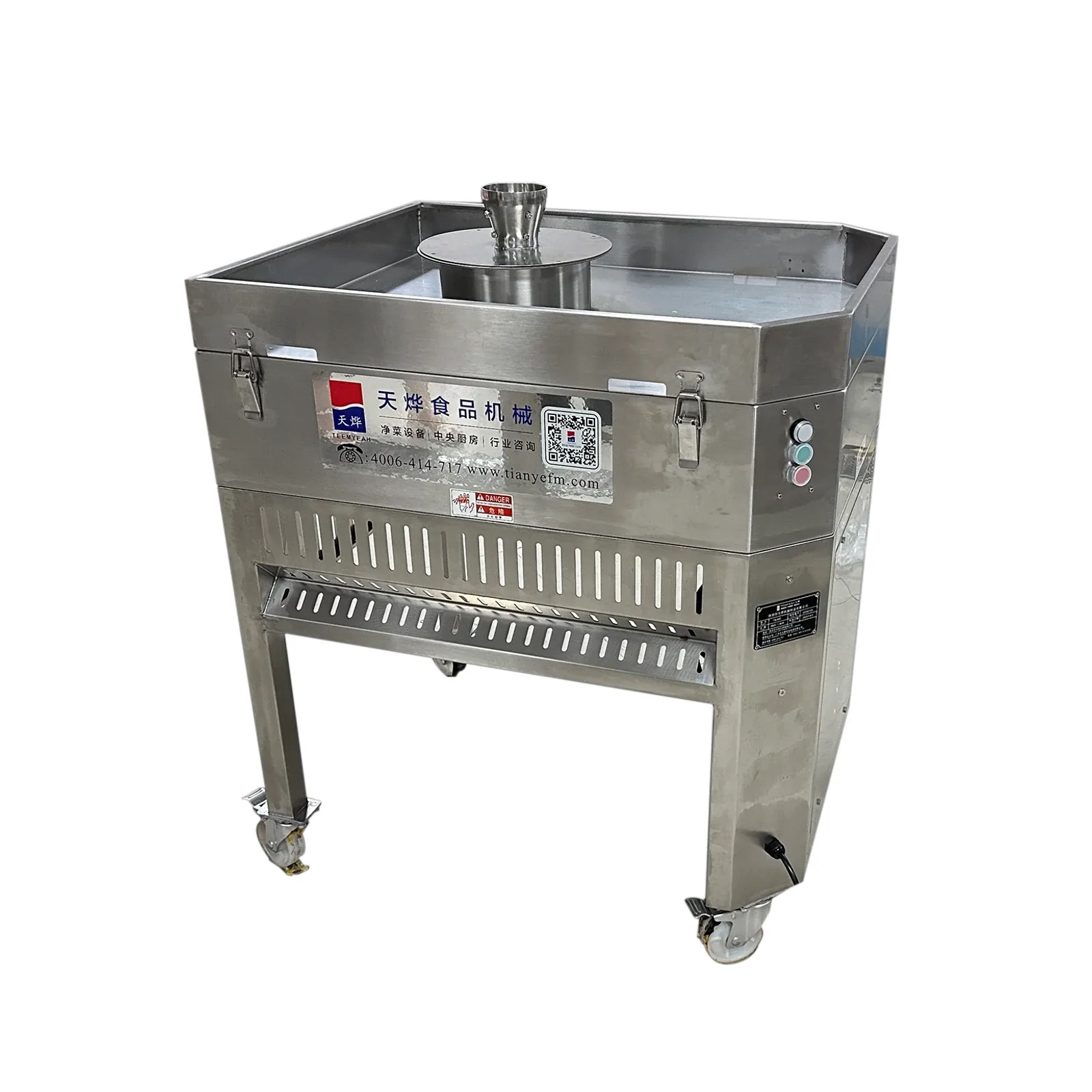

TEEMYEAH FB-600 Large Fruit and Vegetable Segment Cutter
Large fruit and vegetable segment cutter for standalone or integrated processing lines
The TEEMYEAH FB-600 divides zucchini, carrots, cabbage and compatible produce into four segments as standard.
Three standard inlet diameters support different product sizes. The machine can operate alone or connect to a production line from the front, left or right.
- Four-segment standard cutting arrangement
- Two-segment version available by configuration
- 65, 110 and 240 mm standard inlet diameters
- SUS304 stainless steel construction
- Standalone or production-line operation
- Three-side elevator connection options
FB-600 Produce Segment Cutter Details
The FB-600 is designed for larger produce and line integration. Interchangeable inlet guides support product-size changeover while the selected knife defines the segment count.
Confirm produce size, firmness, orientation, segment count and line transfer direction before approving the layout.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FB-600 |
| Product | Large Fruit and Vegetable Segment Cutter |
| Dimensions (L × W × H) | 935 × 735 × 1,160 mm |
| Standard Inlet Diameters | 65, 110 and 240 mm |
| Standard Segment Count | 4 segments |
| Optional Segment Count | 2 segments by configuration |
| Power Supply | 380 V |
| Power | 0.75 kW |
| Outlet Height | 500 mm |
| Machine Weight | 125 kg |
| Construction | SUS304 stainless steel |
Confirm product diameter, knife configuration and line interfaces with representative produce.
Applications
The FB-600 supports large-produce segmenting in kitchens and processing plants.
- Zucchini and carrot preparation
- Cabbage segmenting
- Central kitchens
- Integrated produce processing lines
The inlet guide and knife must match the intended produce.
Discuss Your FB-600 Application
Share the produce, diameter range, segment count, line direction and hourly target.
Changing Inlet Guides
Select the inlet guide that best controls the product diameter during feeding.
Line Connection Direction
Confirm whether the elevator approaches from the front, left or right before finalizing the layout.
FB-600 Produce Segment Cutter Display
