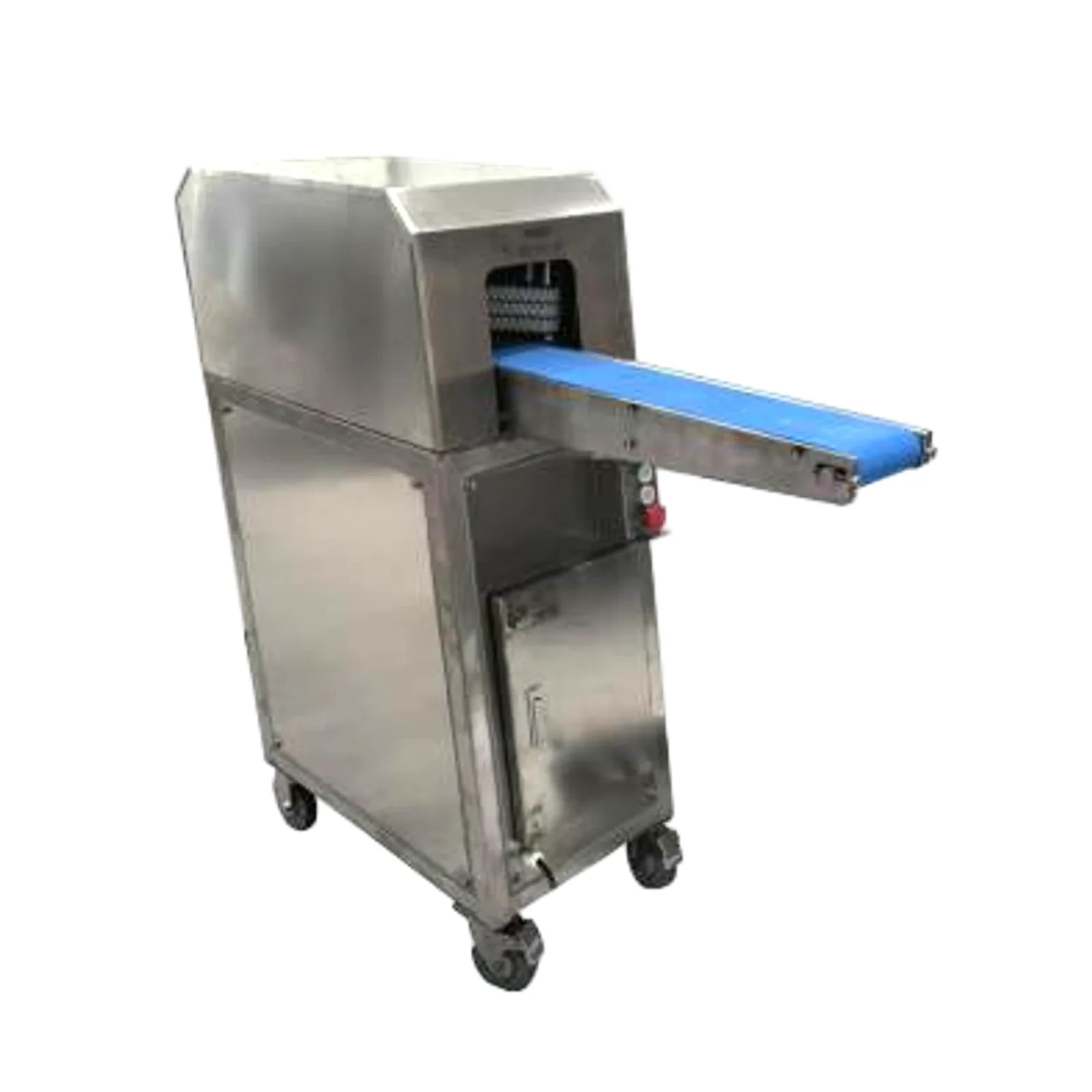

TEEMYEAH FB-270 Industrial Pig Trotter Splitter
Automatic pig trotter splitting machine for meat processors, central kitchens and prepared-food operations
The TEEMYEAH FB-270 automatically centers and splits fresh or frozen pig trotters into two portions. The listed feed opening is 150 × 150 mm.
An elastic toothed clamping conveyor holds the product during transfer. Opening the safety cover stops the machine automatically.
- Automatic centering for more consistent splitting
- Elastic toothed clamping conveyor
- Safety-cover interlock stops the machine when opened
- IP65 waterproof electrical enclosure
- Machine body can be cleaned with a high-pressure water gun
- Reference output of 1,200–1,500 pieces per hour
FB-270 Trotter Splitter Details
The FB-270 is intended for repetitive center splitting where manual positioning and knife handling would otherwise limit consistency. The conveyor speed is listed at 158 mm/s and the working height at 958 mm.
Confirm product size, frozen condition and the required split through a representative trial. Use the supplied operating and sanitation procedures for guarding, cleaning and blade service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FB-270 |
| Product | Automatic Pig Trotter Splitter |
| Dimensions (L × W × H) | 1,285 × 450 × 1,238 mm |
| Feed Opening | 150 × 150 mm |
| Working Height | 958 mm |
| Conveyor Speed | 158 mm/s |
| Reference Output | 1,200–1,500 pieces/h |
| Power Supply | 3-phase 380 V |
| Power | 0.75 kW |
| Machine Weight | 128 kg |
| Electrical Enclosure | IP65 |
Output depends on product size, temperature, loading rhythm and the required finished split.
Applications
The FB-270 supports repetitive splitting of pig trotters and other compatible products.
- Meat processors and prepared-food factories
- Central kitchens and catering operations
- Supermarkets and meat markets
- Institutional kitchens and meal-distribution facilities
Suitability for poultry or root vegetables should be confirmed with representative product before ordering.
Discuss Your FB-270 Application
Share the product type, size range, frozen condition, hourly target and available power supply. TEEMYEAH can review feed fit and arrange a splitting trial.
Centering and Product Control
The automatic centering mechanism and toothed conveyor help keep the product positioned as it enters the splitting area.
Cleaning and Safety Planning
Allow access around the guarded cutting area and document the washdown, inspection and lockout routine before commissioning.

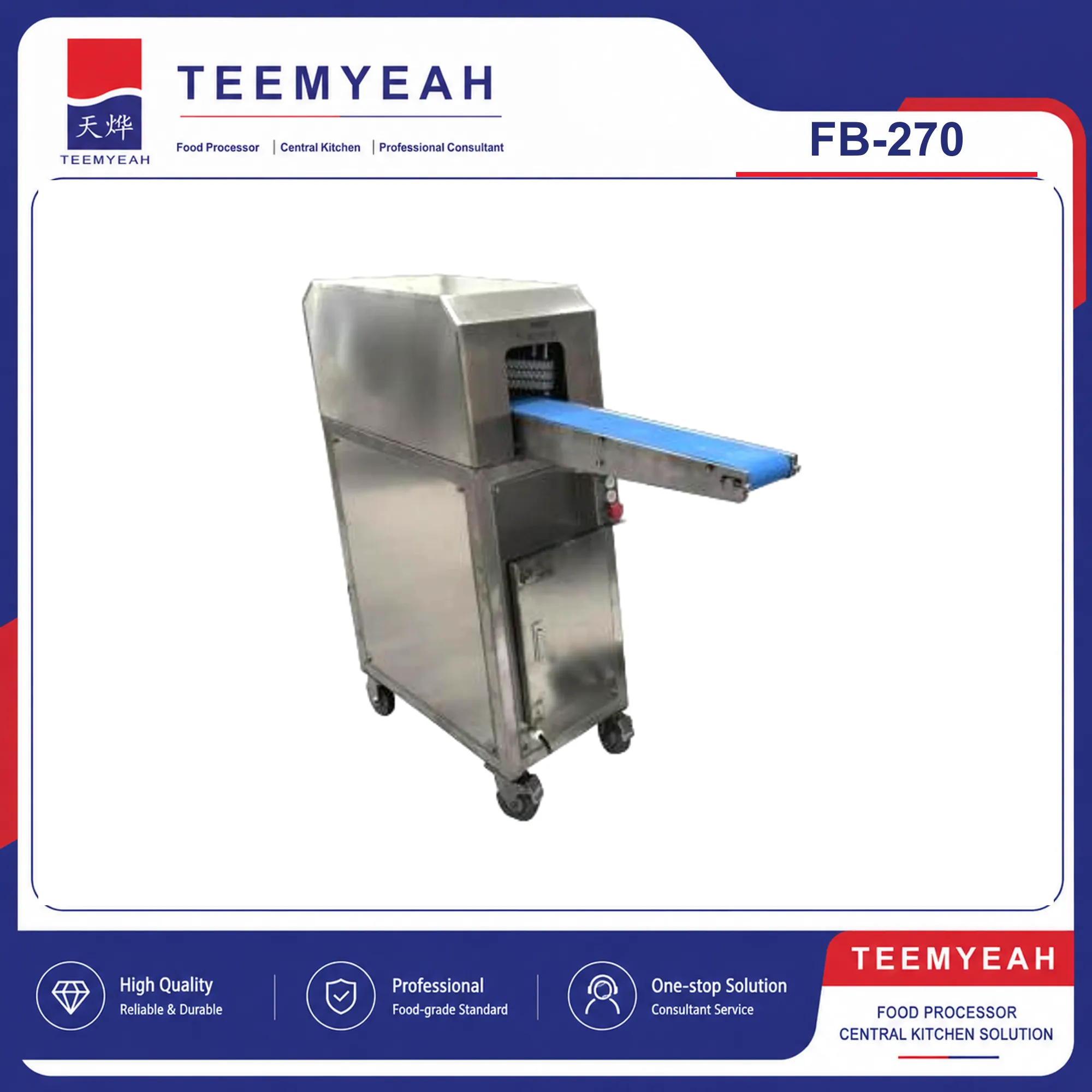

FB-270 Trotter Splitter Display
